Description

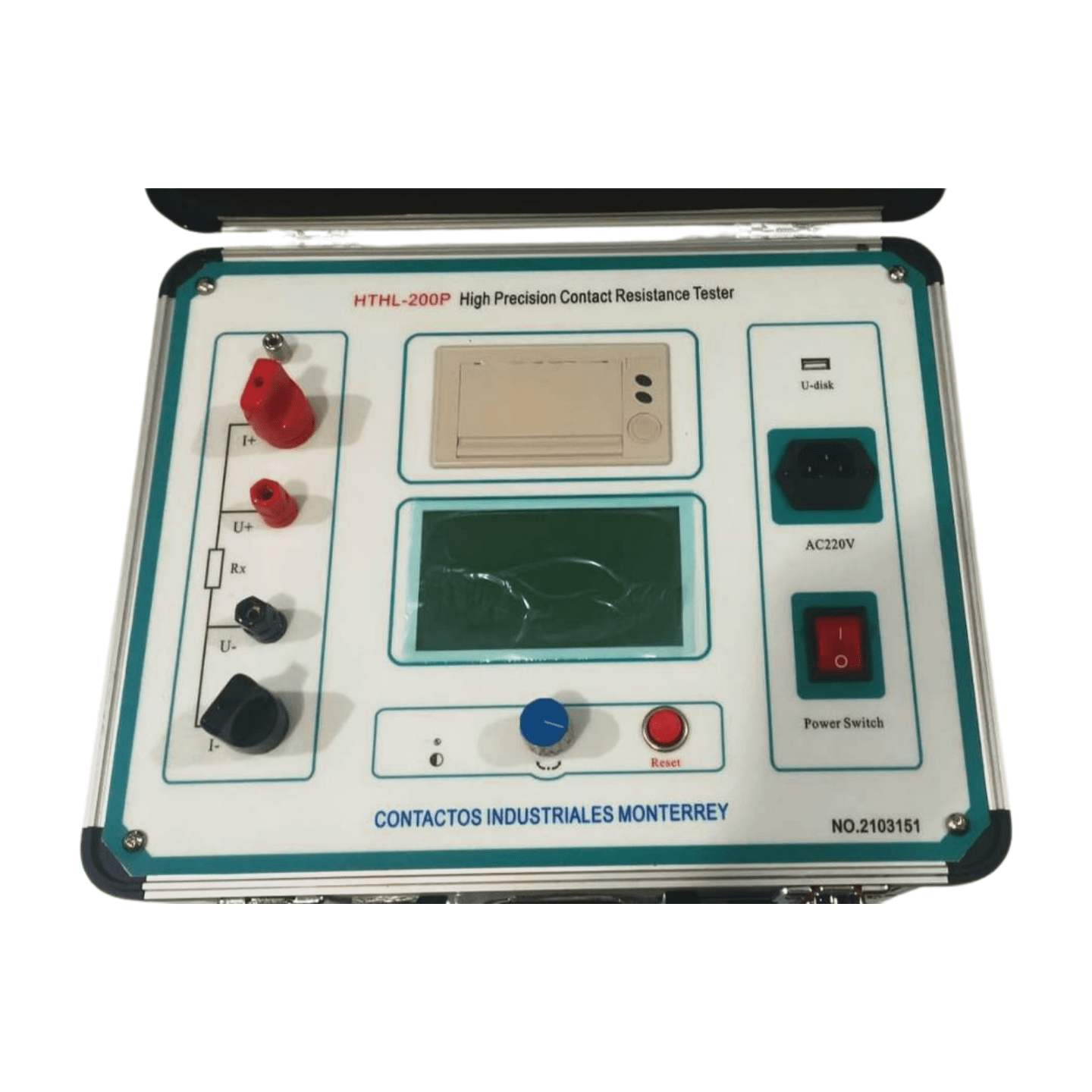

Wuhan HTHL 200P Portable Automatic Loop Contact Resistance Tester

• Parameters
• Measurement range 0～9μΩ
• Resolution 0～99, 0.01μΩ 100.0～2999.9, 0.1μΩ
• Measured current DC 50A, 100A, 150A, 200A fixed output
• Accuracy ±(0.5% rd+2d)
• Continuous working time 5s～599s
• Display LCD
• Communication mode USB
• Power supply AC220V±10% 50Hz
• Power of the whole machine 1200W
• Maximum storage record 200
• Service conditions Temperature -10℃～40℃, humidity:≤80%RH
• Dimension 380×310×260 mm
• Weight 11Kg (not including accessory)

For more details contact our representative through Request Quote Form or email us at info@industryrent.com
