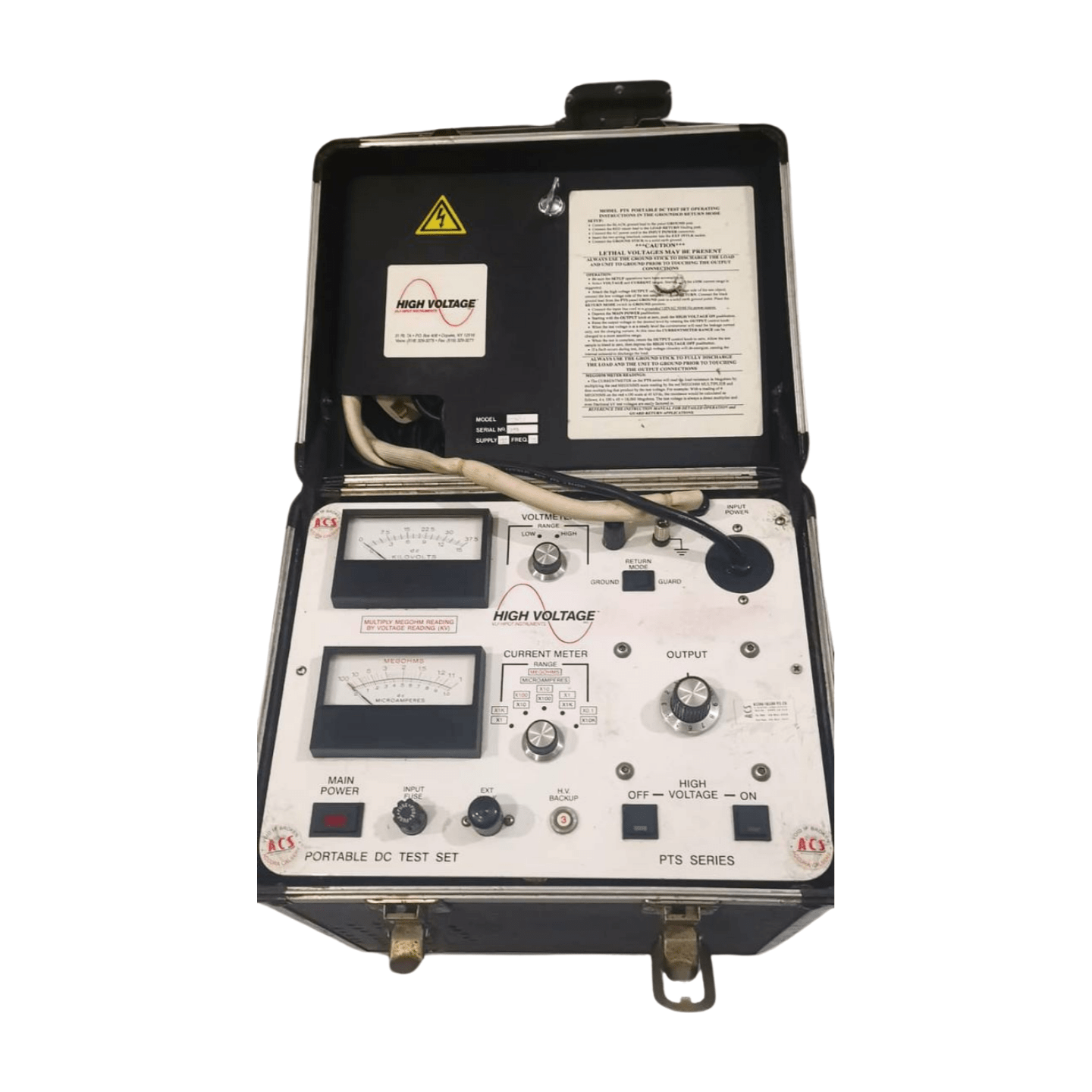

HVI, USA PTS Series – DC High Voltage Test Set and Megohmmeter (0 – 37.5 kV DC hipot and Megohmmeter)

The PTS-37.5, PTS-37.5F5 and PTS-37.5F6 are combination high voltage DC proof tester and megohmmeter. Dielectric strength and insulation resistance testing are combined into one instrument saving time, money, size and weight.

Equipped with a 5-range current meter scaled 0 – 1 dc microamps for accurate current measurement down to a 10 nanoamp resolution in the x1 range. Using the alternate scale on the current meter allows the PTS Series to double  as a Megohmmeter up to 3.75 teraohms, scaled 100-1 megohms, insulation  resistance can be taken at any voltage. An accurate 2 range voltmeter rounds  out the standard instrumentation. Additional features include ruggedized anti-static and transit protected meters, rugged single piece design with foam padded handles, full-wave bridge rectifier, internal shorting solenoid with discharge resistors, and is CE marked. Safety Ground Sticks

• 20 foot (6 meter) shielded output cable, ground and return leads
• 5 range current/megohm meter for accurate leakage current
• Megohm readings at any output voltage up to 3.75 teraohms
• Full-wave bridge rectifier
• Internal HV Shorting Solenoid with discharge resistors
• Automatic transit protected meters with Anti-static glass face
• Under lid storage for all accessories
• External safety and zero start interlocks
