Description

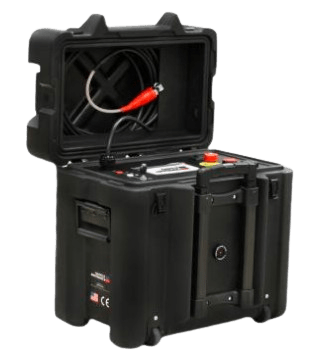

The 800PL Series Hipot is a modern solution for testing the insulation strength of electrical apparatus. Outfitted with a state-of-the-art digital interface, and extensive safety features, this robust unit ensures simplistic operation, accurate results, and operator safety under all circumstances. And if a longer duty cycle is required, the 880PL-HD model is the perfect solution for your testing needs.

• 7” color, touch screen display with adjustable brightness
• DC hipot tests up to 80kV at 10mA
• Lightweight, rugged design for field use with wheels
• Measures output voltage, leakage current, insulation resistance (IR), and polarization index (PI)
• Adjustable test parameters such as target voltage, maximum leakage, ramp rate, and dwell tim
• Recorded test results and data transfer via USB 2.0
• Safe operation with interlock and emergency stop
• Internal discharge solenoid
