Description

To access the full manual, Click Here

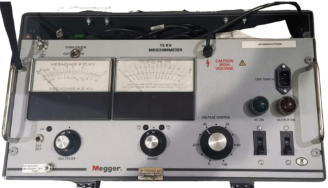

The 15-kV Megohm-meters are high-voltage, line-operated instruments. They provide a continuously variable test voltage for highly sensitive insulation resistance measurements of all types of electrical equipment and power cables. The instruments are designed to withstand harsh field conditions and feature tough and impact-resistance casing.

 APPLICATIONS

The units are suitable for dielectric absorption and step voltage testing.

The 15-kV Megohmmeter provides direct reading measurements up to 100,000 MΩ at 5 kV and up to 200,000 MΩ at 10 kV, with a multiplying factor for all other voltages up to 15 kV.

The 15-kV model also features an internal voltage stabilizer that may be activated for improved measurement under extreme field conditions. Separate on/off controls are provided for power and high voltage, and a red light indicates when high voltage is on.

FEATURES AND BENEFITS

• Provides 2% kV and MΩ accuracyGuard terminal to eliminate surface leakage current from the measurement
• Zero-start, high-voltage interlock
• Shielded, high-voltage output cable permanently connected to the instrument
• Circuit-breaker protection
• Redundant grounding connections
• Easy-to-follow, color-coded meter scales
• Analog metering for monitoring of variable measurements
• Rugged field construction
