Description

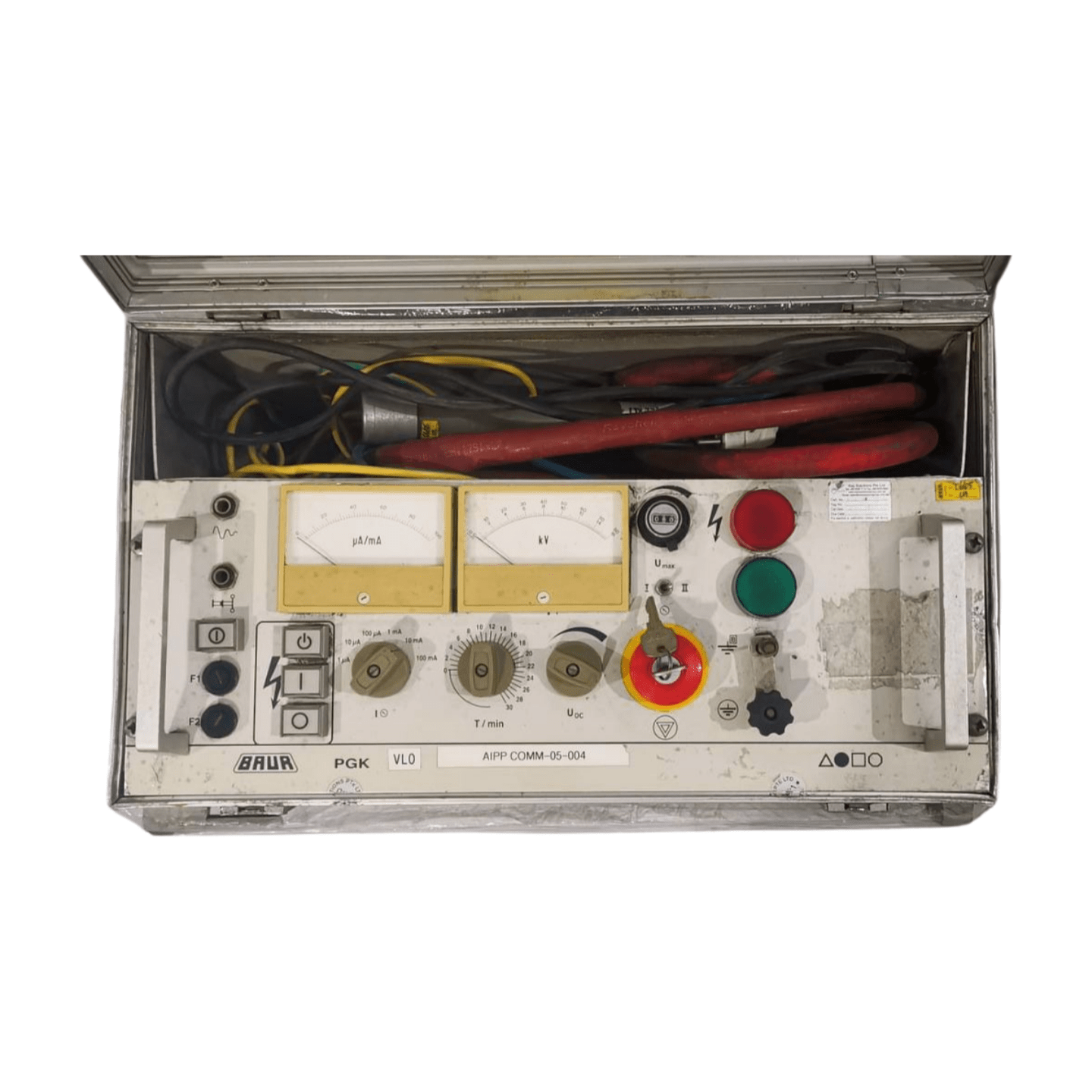

The portable high voltage devices PGK 80 for generation of negative high voltage up to 80 kV are designed for at-site testing of paper-insulated mass-impregnated cables in medium voltage networks. A high-voltage transformer and a voltage multiplier generate high voltage. Thanks to an internal operating frequency of 20 kHz small dimensions are possible. Packaged in a handy carrying case with handles and a carrying strap, the PGK units are portable and well-equipped for field applications.

Features:

• stepless adjustable output voltage
• voltage measurement is made directly at high voltage output
• timer 1-30 min
• sensitive current measurement for the acquisition of the smallest insulation currents (6 ranges)
• high short-circuit current
• safety control according to VDE 0104
• transient wave protection
• socket for safety contact, emergency off switch, external signal lamps
•  connection of the Y/t plotter for recording the current output
